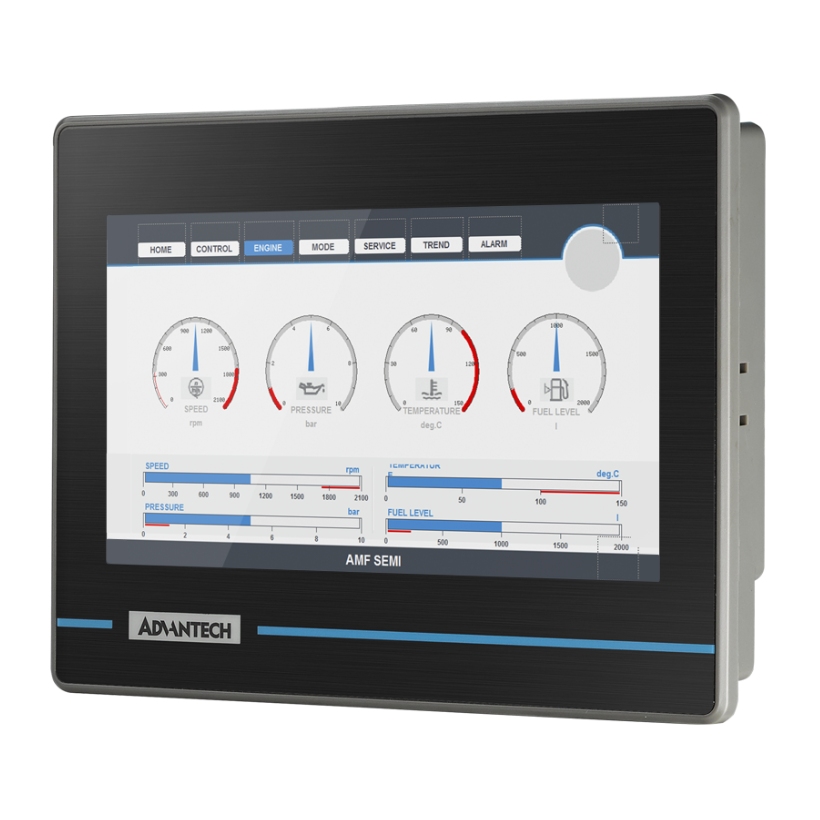

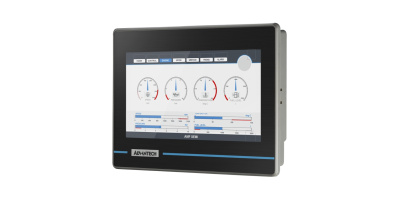

WOP-207K: 7" WVGA, 64MB, 128MB(NAND), Serialx3,Ethernet

WOP-207K

WOP-207K-NAE

WOP-207K-SAE

Environment

Ingress Protection

Front Panel IP66

All-around IP66

Operating Temperature

-15~65 °C (5~149 °F)

-15~65 °C (5~149 °F)

Relative Humidity

5~95% RH (non-condensing)

5~95% RH (non-condensing)

Vibration Protection

1 Grms, random

1 Grms, random

General

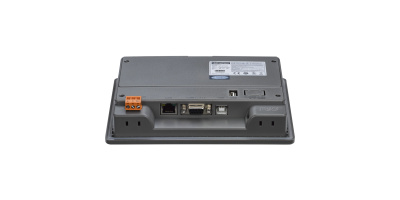

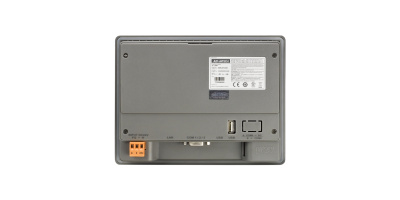

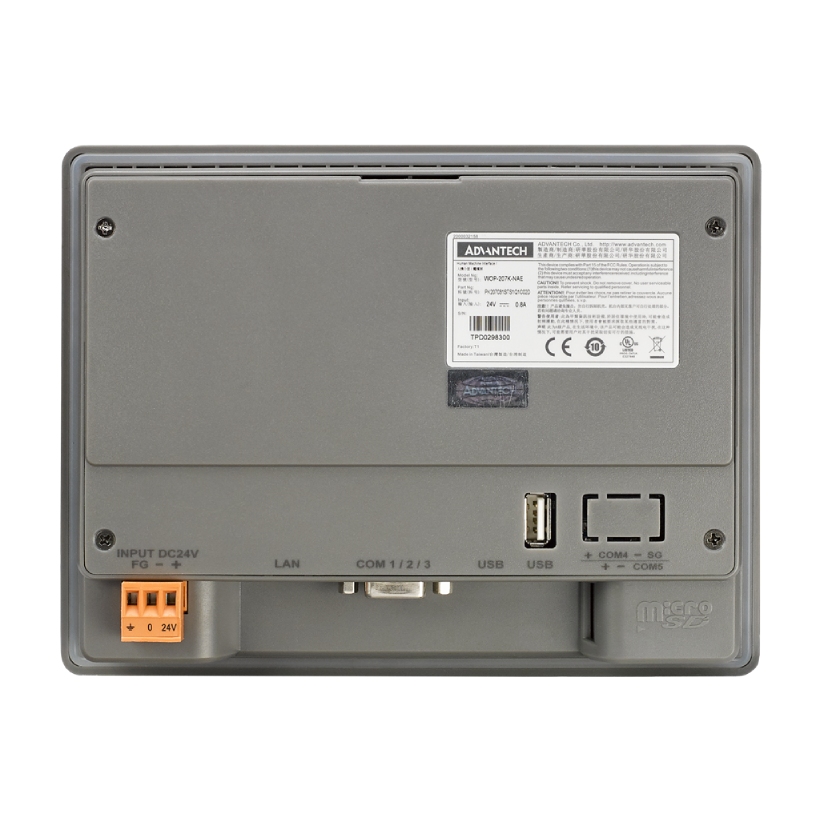

Connectors

1 x RJ45, 1 x DB9 female

1 x DB9 female connector

Programming Language

HMINavi Designer

HMINavi Designer

Protocol

500+ PLC Drivers

500+ PLC Drivers

Rated Voltage

24 VDC (±10%)

24 VDC (±10%)

Hardware

Certification

CE, FCC class A, UL-61010

CE, FCC class A, UL-61010

CPU

ARM9™ 32-bit RISC processor

ARM9™ 32-bit RISC processor

LAN

1 x 10/100 Mbps

Memory

1 x 64 MB SDRAM

1 x 64 MB SDRAM

OS Support Power Consumption

RTOS

RTOS

Power Consumption

20 W @ 24 VDC

20 W @ 24 VDC

Power Requirement

24 VDC ±10%

24 VDC ±10%

Storage

1 x 128M NAND Flash

1 x 128M NAND Flash

I/O Interface

Serial Ports

1 x RS-232, 1 x RS-422/485, 1 x RS-485

1 x RS-232, 1 x RS-422/485, 1 x RS-485

USB Ports

1 x USB (Host), 1 x USB (Client)

1 x USB (Host), 1 x USB (Client)

LCD Display

Backlight Life (hrs)

20,000

20,000

Display Size

7"

7"

Luminance (cd/m2)

400

400

Max. Resolution

800 x 480

800 x 480

Mechanical

Dimension (W x H x D)

189.6 x 144.9 x 36 mm

189.6 x 144.9 x 36 mm

Enclosure

PC + ABS

PC + ABS

Mounting

Panel

Panel

Weight (Net)

0.55 kg (1.21 lb)

0.55 kg (1.21 lb)

Touchscreen

Touch Type

4-wire resistive

4-wire resistive
