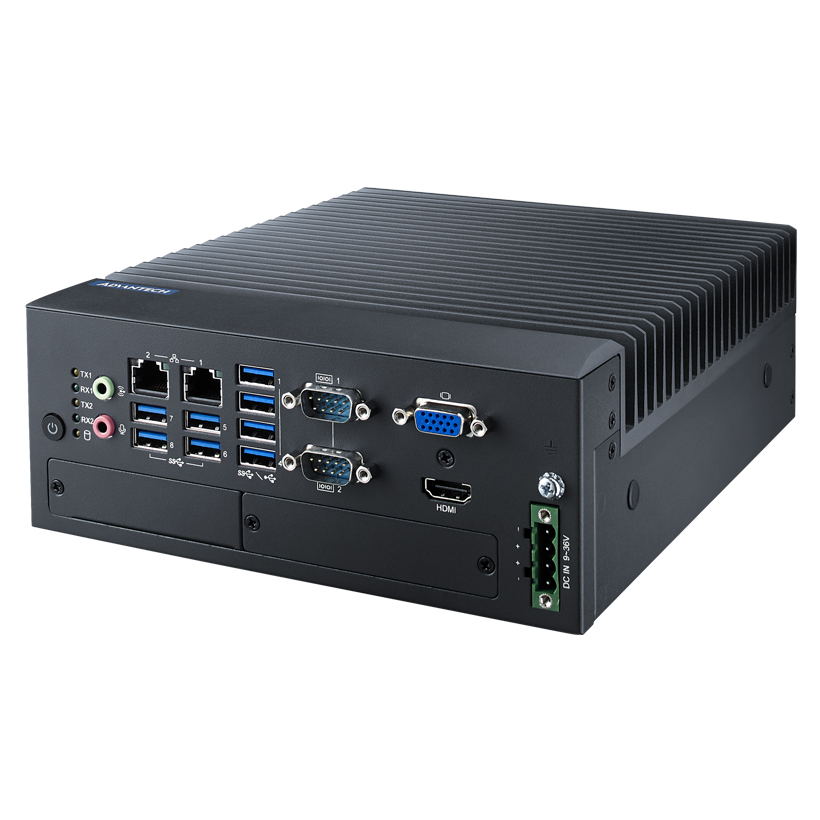

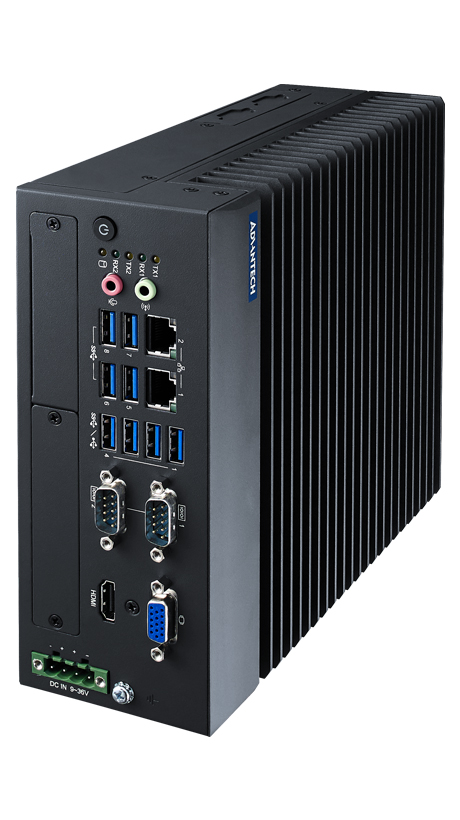

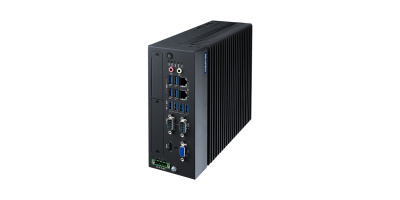

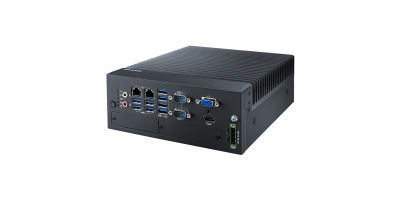

MIC-770 V3: Compact Fanless System with 12th/13th Gen Intel® Core™ i CPU Socket (LGA 1700)

MIC-770 V3

MIC-770V3W-00A1

MIC-770V3H-00A1

MIC-770V3W-E0A1

MIC-770V3H-E0A1

Processor System

CPU

Intel® Core™ processors (14th/13th/12th Gen)

Intel® Core™ processors (14th/13th/12th Gen)

Intel® Core™ processors (14th/13th/12th Gen)

Intel® Core™ processors (14th/13th/12th Gen)

Socket

1 x LGA1700

1 x LGA1700

1 x LGA1700

1 x LGA1700

CPU TDP

Up to 65 W

Up to 65 W

Up to 65 W

Up to 65 W

Core Number

Up to 24

Up to 24

Up to 24

Up to 24

L3 Cache

Up to 30 MB

Up to 30 MB

Up to 30 MB

Up to 30 MB

Chipset

Intel® R680E

Intel® H610E

Intel® R680E

Intel® H610E

BIOS

AMI 256 / 128 Mbit SPI Flash

AMI 256 / 128 Mbit SPI Flash

AMI 256 / 128 Mbit SPI Flash

AMI 256 / 128 Mbit SPI Flash

Memory

Technology

Dual-channel DDR5 4800 MHz

Dual-channel DDR5 4800 MHz

Dual-channel DDR5 4800 MHz

Dual-channel DDR5 4800 MHz

Max. Capacity

64 GB

64 GB

64 GB

64 GB

Socket

2 x 262-pin DDR5 SO-DIMM

2 x 262-pin DDR5 SO-DIMM

2 x 262-pin DDR5 SO-DIMM

2 x 262-pin DDR5 SO-DIMM

Graphics

Controller

Intel® UHD Graphics

Intel® UHD Graphics

Intel® UHD Graphics

Intel® UHD Graphics

Storage

HDD

1 x 2.5" internal HDD/SSD bay

1 x 2.5" internal HDD/SSD bay

1 x 2.5" internal HDD/SSD bay

1 x 2.5" internal HDD/SSD bay

M.2

1 x NVMe M.2 2280 (PCIe Gen4 x4), M-Key

-

1 x NVMe M.2 2280 (PCIe Gen4 x4), M-Key

-

mSATA

1

1

1

1

RAID

0/1/5/10

-

0/1/5/10

-

Expansion

PCIe x16

Supported via i-Module

Supported via i-Module

Supported via i-Module

Supported via i-Module

PCIe x8

Supported via i-Module

Supported via i-Module

Supported via i-Module

Supported via i-Module

PCIe x4

Supported via i-Module

Supported via i-Module

Supported via i-Module

Supported via i-Module

PCIe x1

Supported via i-Module

Supported via i-Module

Supported via i-Module

Supported via i-Module

PCI

Supported via i-Module

Supported via i-Module

Supported via i-Module

Supported via i-Module

Mini PCIe

2

1

2

1

Ethernet

Connector

2 x RJ45

2 x RJ45

2 x RJ45

2 x RJ45

Speed

10/100/1000 Mbps

10/100/1000 Mbps

10/100/1000 Mbps

10/100/1000 Mbps

Controller

LAN1: Intel® I219LM, LAN2: Intel® I210IT

LAN1: Intel® I219V, LAN2: Intel® I210IT

LAN1: Intel® I219LM, LAN2: Intel® I210IT

LAN1: Intel® I219V, LAN2: Intel® I210IT

Front I/O Interface

Display

1 x VGA, 1 x HDMI

1 x VGA, 1 x HDMI

1 x VGA, 1 x HDMI

1 x VGA, 1 x HDMI

LAN

2

2

2

2

USB

2 x USB 3.2 (Gen2), 6 x USB 3.2 (Gen1), 1 x USB 2.0 (Internal)

4 x USB 3.2 (Gen1), 4 x USB 2.0

2 x USB 3.2 (Gen2), 6 x USB 3.2 (Gen1), 1 x USB 2.0 (Internal)

4 x USB 3.2 (Gen1), 4 x USB 2.0

COM

2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional)

2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional)

2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional)

2 x RS-232/422/485 (Supports auto flow control), 4 x RS-232 (Optional)

Audio

2 (1 x Line-out, 1 x Mic-in)

2 (1 x Line-out, 1 x Mic-in)

2 (1 x Line-out, 1 x Mic-in)

2 (1 x Line-out, 1 x Mic-in)

WatchDog Timer

Output

System Reset

System Reset

System Reset

System Reset

Interval

Programmable 1~255 sec

Programmable 1~255 sec

Programmable 1 ~ 255 sec/min

Programmable 1 ~ 255 sec/min

Certification

EMC, Safety

CE/FCC Class A, CCC, BSMI, UL/CB

CE/FCC Class A, CCC, BSMI, UL/CB

CE/FCC Class A, CCC, BSMI, UL/CB

CE/FCC Class A, CCC, BSMI, UL/CB

Power Supply

Power Type

ATX, AT

ATX, AT

ATX, AT

ATX, AT

Input Range

9 ~ 36 VDC

9 ~ 36 VDC

9 ~ 36 VDC

9 ~ 36 VDC

Environment

Operating Temperature

-20 ~ 50 °C with 0.7 m/s air flow

-20 ~ 50 °C with 0.7 m/s air flow

-20 ~ 35 °C without air flow

-20 ~ 35 °C without air flow

Non-Operational Temperature

-40 ~ 85° C (-40 ~ 185° F)

-40 ~ 85° C (-40 ~ 185° F)

-40 ~ 85° C (-40 ~ 185° F)

-40 ~ 85° C (-40 ~ 185° F)

Operating Shock

With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration

With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration

With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration

With SSD: 20G, IEC-68-2-27, half-sine wave, 11 ms duration

Humidity

95% @ 40° C (non-condensing)

95% @ 40° C (non-condensing)

95% @ 40° C (non-condensing)

95% @ 40° C (non-condensing)

Mechanical

Dimensions (W x H x D)

-

-

107.3 x 192 x 230 mm

107.3 x 192 x 230 mm

Weight (Net)

2.9 kg (6.39 lb)

2.9 kg (6.39 lb)

4.65 kg (10.25 lb)

4.65 kg (10.25 lb)

Mounting

Desktop, Wall mount

Desktop, Wall mount

Desktop, Wall mount

Desktop, Wall mount
