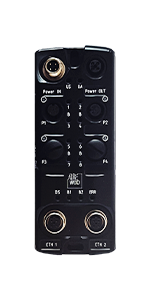

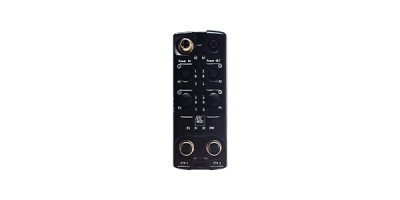

SC67ILM-1-F: IO-Link Master / EtherNet/IP Slave - Converter (Structured Cabling)

Ports:

4xIO-Link; 1xEthernet;

Ethernet protocol

EtherNet/IP Slave

IO-Link protocol

IO-Link Master

Data rates EtherNet/IP

10/100 Base-T Autosensing

Data rates IO-Link

4800 bps - 38400 bps - 230400 bps

EtherNet/IP Connector

2x M12 Type D Female

IO-Lin Connector

4x IO-Link A: M12 Type A Female

Power Supply

18..30V DC

Power IN Connector

M12 Type T Male

Power OUT Connector

M12 Type T Female

Operating temperature

-40° to +85° (-40°F to +185°F)

Dimensions

35x60x150 (LxWxH)

Weight

250g approx

SOFTWARE

SW67ILM-F
