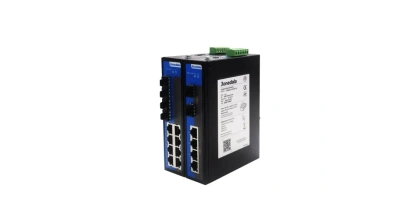

IES6300SL-16GP4GS-2LV: Switch công nghiệp quản lý 16 cổng Gigabit PoE+ 4 cổng Gigabit SFP

Giá: Liên hệ

Nút thêm vào giỏ hàng sẽ xuất hiện sau khi bạn chọn các giá trị ở trên

IES6300SL-16GP4GS-2LV: Switch công nghiệp quản lý 16 cổng Gigabit PoE+ 4 cổng Gigabit SFP của hãng 3Onedata-China hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. IES6300SL-16GP4GS-2LV được thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng.Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh, hệ thống kiểm soát an ninh…

Tính năng của sản phẩm:

Support 2 Gigabit SFP slots and 4 Gigabit copper ports (optional PoE), 4 Gigabit SFP slots and 8 Gigabit copper ports (optional PoE) or 4 Gigabit SFP slots and 16 Gigabit copper ports (optional PoE)
Adopt Ring patented technology, support single ring, coupling ring, chain, Dual-homing function
Support multiple network protocols and industry standards, such as STP/RSTP/MSTP, ERPS, PoE, DHCP, VLAN, QoS, IGMP Snooping, LLDP, ACL and SNMP.
In PoE products, the maximum power consumption of 6 ports is 120W, and that of 12/16 ports is 240W
Support dual power redundancy. The input voltage of non-PoE products: 12~60VDC, and that of PoE products: 44~57VDC
Support -40~75℃ wide operating temperature range

Thông số kỹ thuật của sản phẩm:

Standard & Protocol	IEEE 802.3 for 10Base-T Ethernet IEEE 802.3u for 100Base-TX IEEE 802.3z for 1000Base-X Fiber IEEE 802.3ab for 1000Base-T IEEE 802.3x for Flow Control and Back Pressure IEEE 802.1D for Spanning Tree Protocol IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1Q for VLAN Tag IEEE802.1p for Class of Service (CoS) IEEE 802.1X for 802.1X User Authentication IEEE 802.1AB for Link Layer Discovery Protocol (LLDP) ITU-T G.8032 for ERPS IEEE 802.3ad for Link Aggregation Control Protocol (LACP) IEEE 802.3af for PoE IEEE 802.3at for PoE+
Management	SNMP v1/v2c/v3, RMON, LLDP, PoE, QoS, DHCP Server, DHCP Snooping, port settings, dynamic/static MAC addresses, MAC/IPv4, storm suppression, user passwords, file management, log management, port statistics, link flapping protection, Modbus TCP monitoring
Security	User Privilege Classification, Port and Power Alarm, SSH Configuration, HTTPS Configuration, Access Control, SNMP, RMON, Port Limit Control, Port Security, NAS, ACL, Ethernet Services, RADIUS Server Authentication, TACACS + Server Authentication, Port Alarm, DC Power Supply Alarm, Email Alarm
Switch Function	802.1Q VLAN, link aggregation, static aggregation, LACP, bandwidth flow control
Unicast / Multicast	Multicast filtering, IGMP Snooping IGMPV1/V2/V3
Redundancy Technology	Ring, STP/RSTP/MSTP, ERPS
Troubleshooting	Log record, port mirroring, Ping, Traceroute, network cable diagnosis, SFP DDM
Time Management	NTP, Time Zone Configuration
PoE (optional)	The maximum power of PoE port: 30W The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6
Interface	Gigabit Copper Port: 10/100/1000Base-T(X), RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning, optional PoE Gigabit SFP: 1000Base-X SFP slot Console port: CLI management port (RS-232), RJ45 Alarm port: support 1 relay alarm output, and adopt 6-pin 5.08mm pitch terminal blocks (relay occupies 2 pins)
LED Indicator	Running Indicator, Alarm Indicator, Power Supply Indicator, Interface Indicator, PoE Indicator
Switch property	IES6300SL-4GT2GS-2LV, IES6300SL-4GP2GS-2LV Transmission mode: store and forward MAC address: 8K Cache: 4.1Mbit Backplane bandwidth: 20Gbps Switch time delay: <10μs IES6300SL-8GT4GS-2LV, IES6300SL-8GP4GS-2LV, IES6300SL-16GT4GS-2LV, IES6300SL-16GP4GS-2LV Transmission mode: store and forward MAC address: 8K Cache: 4.1Mbit Backplane bandwidth: 56Gbps Switch time delay: <10μs
Power Supply	IES6300SL-4GT2GS-2LV, IES6300SL-8GT4GS-2LV, IES6300SL-16GT4GS-2LV Power supply input: 12~60VDC, dual power supply redundancy Connection method: adopt 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply) Connection protection: support anti-reverse connection IES6300SL-4GP2GS-2LV, IES6300SL-8GP4GS-2LV, IES6300SL-16GP4GS-2LV Power supply input: 44~57VDC, dual power supply redundancy Connection method: adopt 6-pin 5.08mm pitch terminal blocks (includes 4-pin power supply) Connection protection: support anti-reverse connection
Power Consumption	IES6300SL-4GT2GS-2LV No-load: 3.6W@48VDC> Full-load: 5.7W@48VDC (high temperature) IES6300SL-8GT4GS-2LV No-load: 5.7W@48VDC> Full-load: 10.1W@48VDC (high temperature) IES6300SL-4GP2GS-2LV No-load: 3.3W@48VDC> Full-load: 113.3W@48VDC> IES6300SL-8GP4GS-2LV No-load: 4.6W@48VDC> Full-load: 229.3W@48VDC> IES6300SL-16GP4GS-2LV No-load: 7.5W@48VDC> Full-load(without PoE): 16.1W@48VDC> Full-load(PoE): 248.1W@48VDC>
Working Environment	Operating temperature: -40~75℃ Storage temperature:-40~85℃ Relative humidity: 5%～95% (no condensation)
Mechanical Structure	IES6300SL-4GT2GS-2LV Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 35mm×150mm×120mm Weight: 0.631kg IES6300SL-8GT4GS-2LV Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 40.6mm×150mm×120mm Weight: 0.678kg IES6300SL-4GP2GS-2LV Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 35mm×150mm×120mm Weight: 0.647kg IES6300SL-8GP4GS-2LV Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 40.6mm×150mm×120mm Weight: 0.694kg IES6300SL-16GT4GS-2LV Housing: IP40 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 65mm×150mm×120mm IES6300SL-16GP4GS-2LV Housing: IP30 protection, metal Installation: DIN-Rail or wall mounting Dimension (W x H x D): 65mm×150mm×120mm Weight: 1.088kg
Industrial Standard	IEC/EN 61000-4-2 (ESD, electrostatic discharge), Level 3 Air discharge: ±8kV Contact discharge: ±6kV IEC/EN 61000-4-3 (RF Field Strength Susceptibility) 80 MHz to 1 GHz: 10 V/m IEC/EN 61000-4-4 (EFT, electrical fast transient pulses), Level 3 Power supply: ±2kV Ethernet port: ±1kV Relay: ±2kV IEC/EN 61000-4-5 (Surge), Level 4+ Power supply: common mode ±6kV, differential mode ±2kV Ethernet port: common mode ±6kV, differential mode ±2kV Relay: common mode ±2kV, differential mode ±1kV IEC/EN 61000-4-6 (Conducted Susceptibility):10KHz IEC/EN 61000-4-8 Power Frequency Magnetic Field Susceptibility Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
Authentication	CE, UL, FCC, RoHS

"BKAII - Thiết bị truyền thông TỐT nhất với giá CẠNH TRANH nhất!"

Tải về ies6300sl-datasheet.pdf
