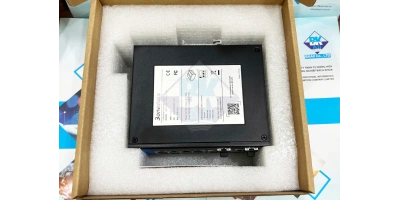

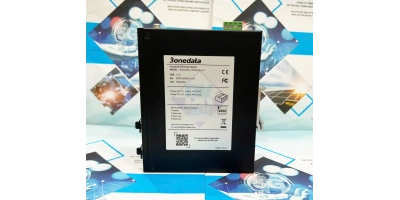

IES2300SL-16GP2GS-2LV: Switch công nghiệp 16 cổng Gigabit PoE + 2 cổng Gigabit SFP

Standard & Protocol

IEEE 802.3 for 10Base-T

IEEE 802.3u for 100Base-TX and 100Base-FX

IEEE 802.3z for 1000Base-X

IEEE 802.3ab for 1000Base-T

IEEE 802.3x for Flow Control

IEEE 802.3af for PoE

IEEE 802.3at for PoE+

PoE (optional)

The maximum power of PoE port: 30W

The power supply pin of PoE: V+, V+, V-, V- correspond to Pin 1, 2, 3, 6

Interface

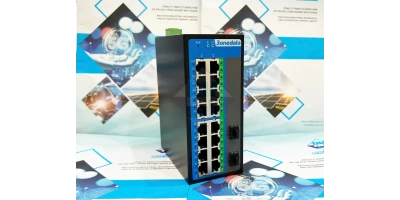

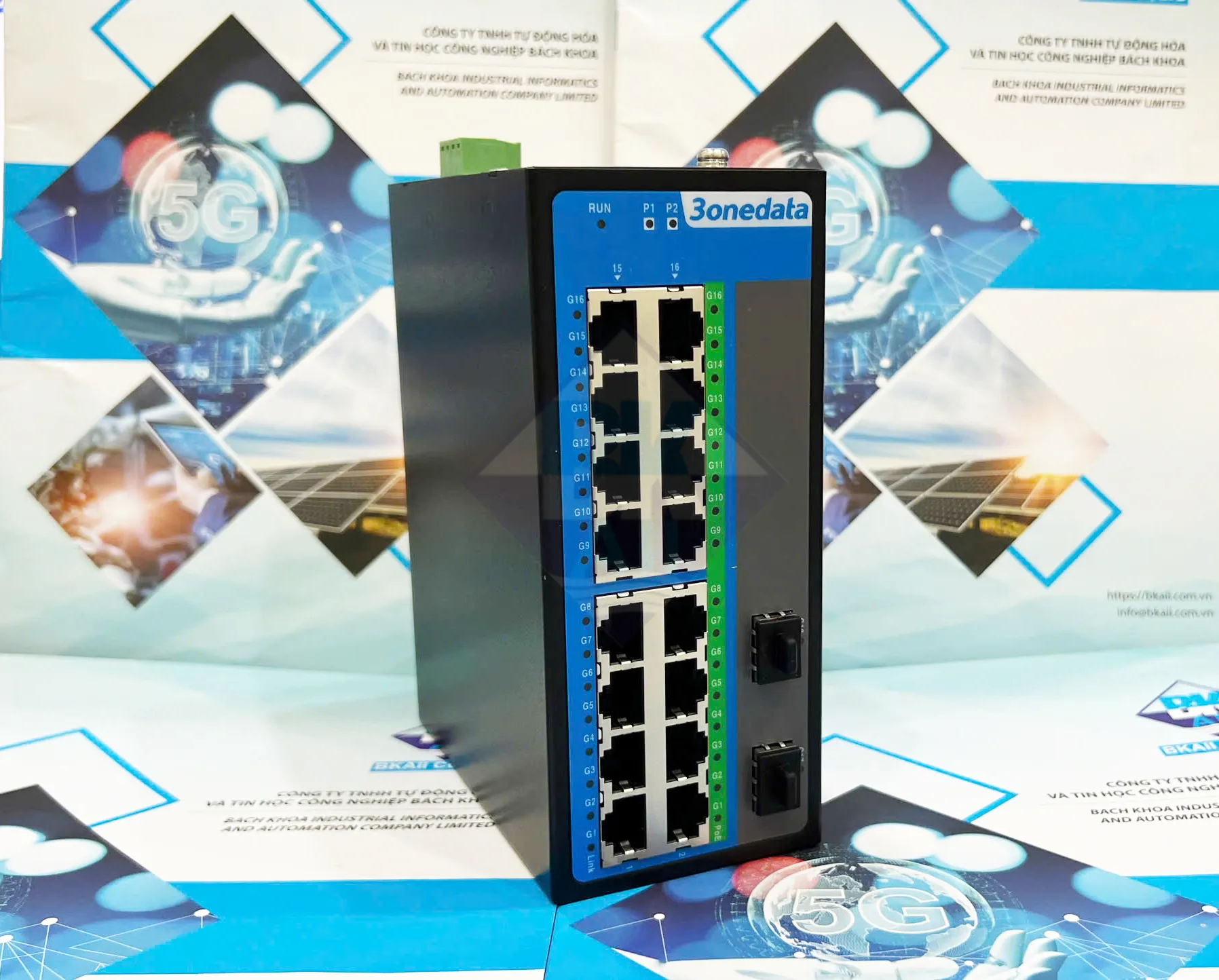

Gigabit Copper Port: 10/100/1000Base-T(X) self-adaption, RJ45, Automatic Flow Control, Full/Half Duplex Mode, MDI/MDI-X Autotunning, optional PoE

Gigabit SFP: 1000Base-X SFP slot

Indicator

Running Indicator, Power Supply Indicator, Interface Indicator, PoE Indicator (PoE device)

Switch Property

IES2300SL-4GT2GS-2LV

• Transmission mode: store and forward
• MAC address: 2K
• Backplane bandwidth: 16Gbps
• Switch time delay: <10μs

IES2300SL-8GT2GS-2LV, IES2300SL-8GP2GS-2LV

• Transmission mode: store and forward
• MAC address: 4K
• Cache: 2.5Mbit
• Backplane bandwidth: 20Gbps
• Switch time delay: <10μs

IES2300SL-16GT2GS-2LV, IES2300SL-16GP2GS-2LV

• Transmission mode: store and forward
• MAC address: 8K
• Cache: 4.1Mbit
• Backplane bandwidth: 52Gbps
• Switch time delay: <10μs

Power Supply

IES2300SL-4GT2GS-2LV, IES2300SL-8GT2GS-2LV, IES2300SL-16GT2GS-2LV

• Power supply input: 12~60VDC, dual power supply redundancy

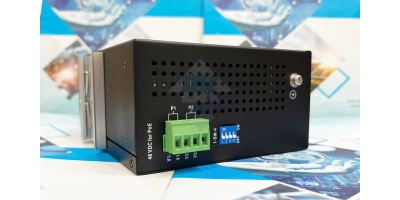

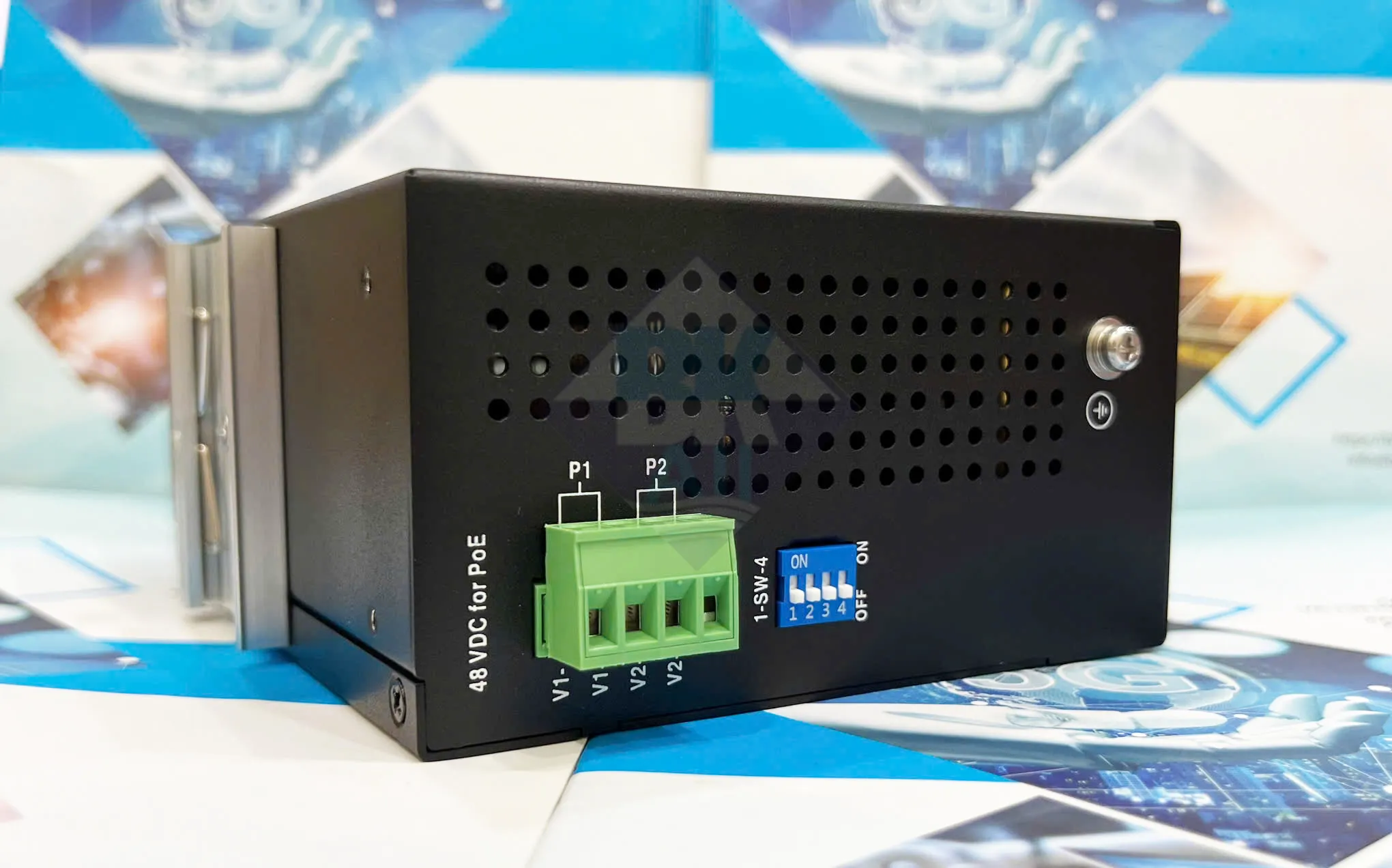

• Connection mode: adopt 4-pin 5.08mm pitch terminal blocks
• Connection protection: support anti-reverse connection

IES2300SL-8GP2GS-2LV, IES2300SL-16GP2GS-2LV

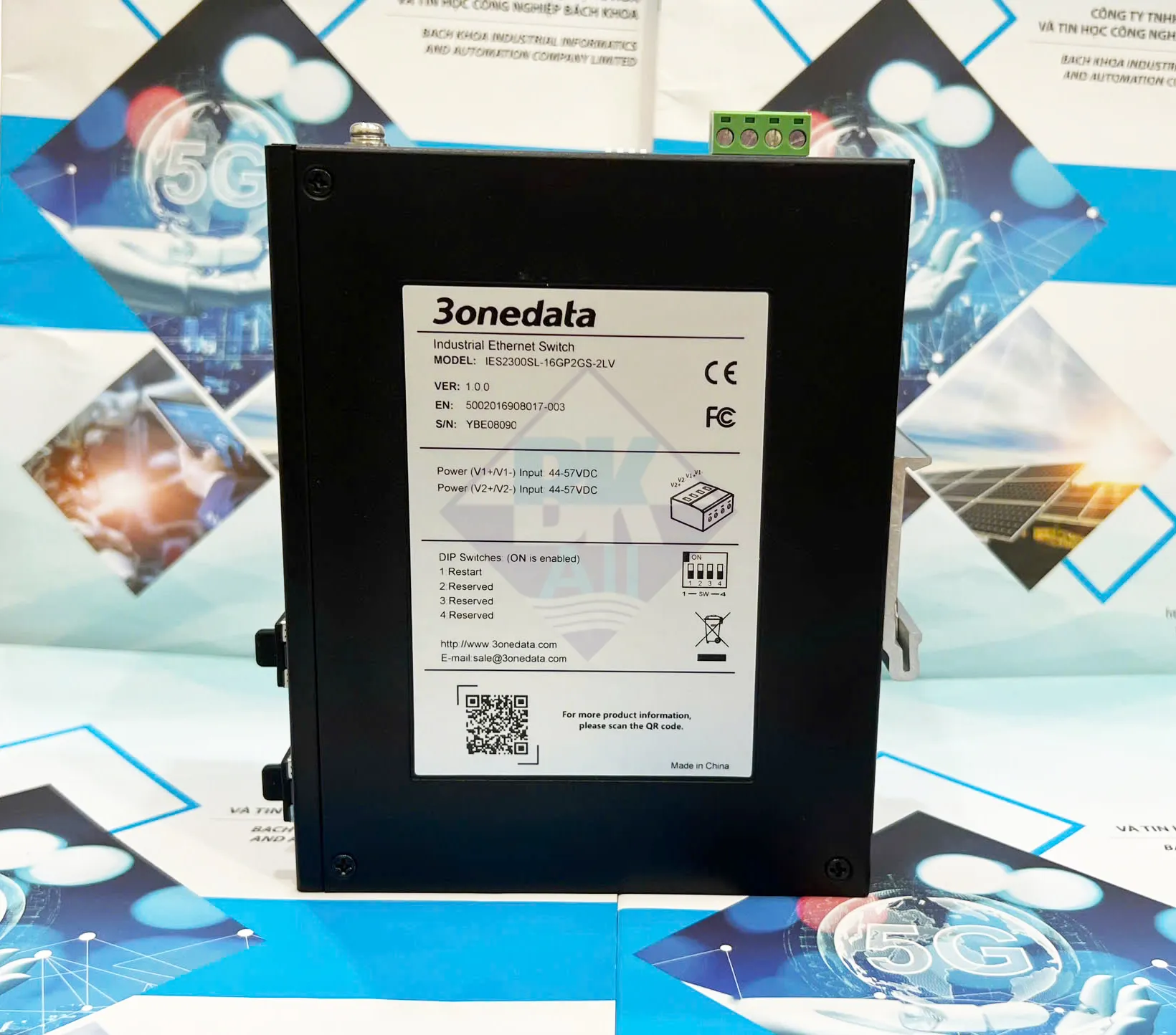

• Power supply input: 44~57VDC, dual power supply redundancy
• Connection mode: adopt 4-pin 5.08mm pitch terminal blocks
• Connection protection: support anti-reverse connection

Power Consumption

IES2300SL-4GT2GS-2LV

• No-load: 0.8W@48VDC>
• Full-load: 3.6W@48VDC>

IES2300SL-8GP2GS-2LV

• No-load: 2.43W@48VDC>
• Full-load (PoE): 229.4W@48VDC>

IES2300SL-16GP2GS-2LV

• No-load: 5.32W@48VDC>
• Full-load (without PoE): 12.96W@48VDC>
• Full-load (with PoE): 238W@48VDC>

Working Environment

Operating temperature: -40~75℃

Storage temperature: -40~85℃

Relative humidity: 5%~95% (no condensation)

Mechanical Structure

IES2300SL-4GT2GS-2LV

• Housing: IP40 protection, metal

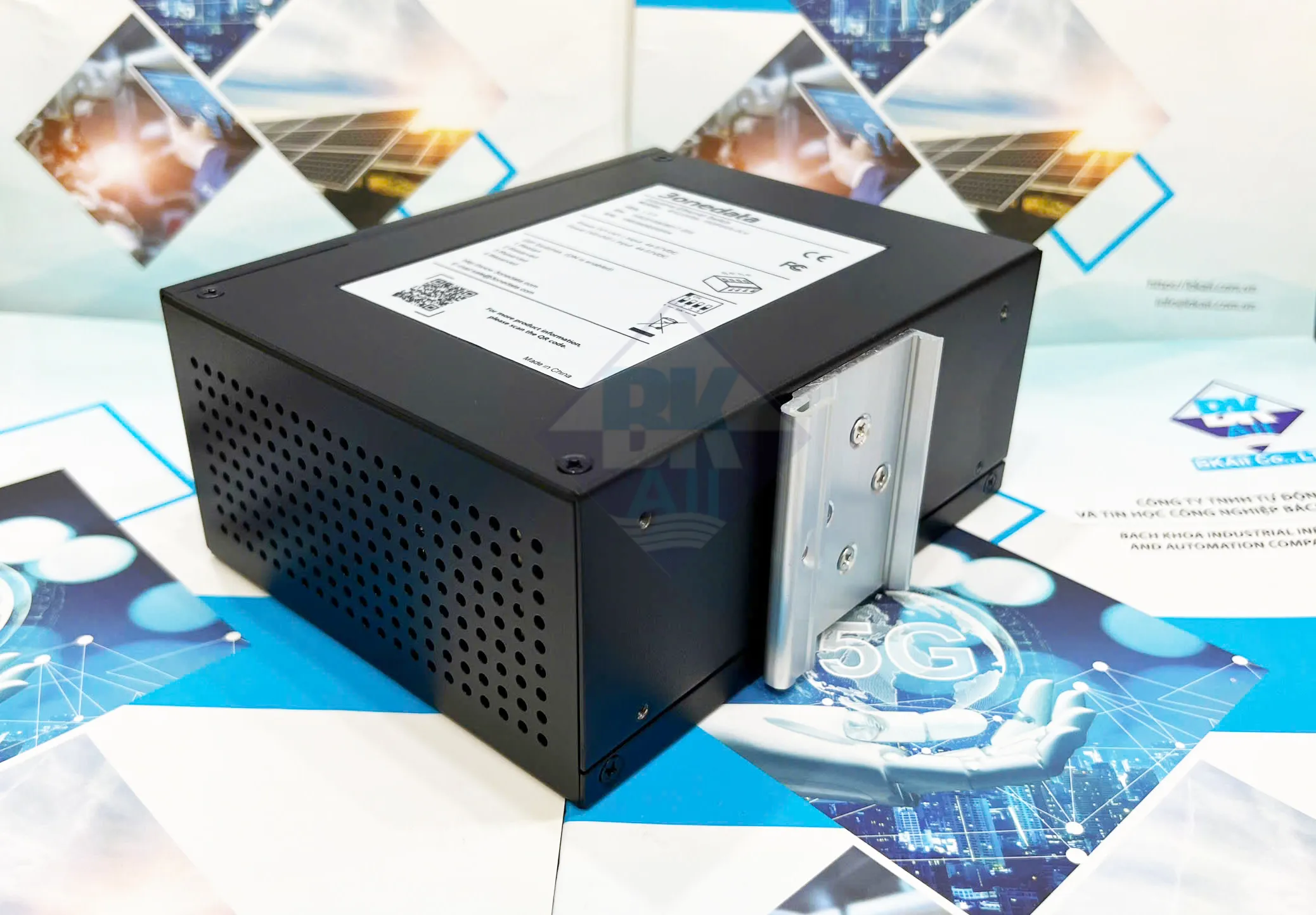

• Installation: DIN-Rail or wall mounting
• Dimension (W x H x D): 35mm×150mm×120mm
• Weight: 562g

IES2300SL-8GT2GS-2LV

• Housing: IP40 protection, metal
• Installation: DIN-Rail or wall mounting
• Dimension (W x H x D): 40.6mm×150mm×120mm
• IES2300SL-8GP2GS-2LV
• Housing: IP40 protection, metal
• Installation: DIN-Rail or wall mounting
• Dimension (W x H x D): 40.6mm×150mm×120mm
• Weight: 639g

IES2300SL-16GT2GS-2LV

• Housing: IP40 protection, metal
• Installation: DIN-Rail or wall mounting
• Dimension (W x H x D): 65mm×150mm×120mm

IES2300SL-16GP2GS-2LV

• Housing: IP30 protection, metal
• Installation: DIN-Rail or wall mounting
• Dimension (W x H x D): 65mm×150mm×120mm
• Weight: 947g

Industrial Standard

IEC 61000-4-2 (ESD, electrostatic discharge), Level 3

• Air discharge: ±8kV
• Contact discharge: ±6kV

IEC 61000-4-4 (EFT, electrical fast transient pulses), Level 3

• Power supply: ±2kV
• Ethernet port: ±1kV

IES2300SL-4GT2GS-2LV

• IEC 61000-4-5 (Surge), Level 3
• Power supply: common mode ±2kV, differential mode ±1kV
• Ethernet port: common mode ±2kV, differential mode ±1kV

IES2300SL-8GT2GS-2LV, IES2300SL-8GP2GS-2LV, IES2300SL-16GT2GS-2LV, IES2300SL-16GP2GS-2LV

• IEC 61000-4-5 (Surge), Level 4+
• Power supply: common mode ±6kV, differential mode ±2kV
• Ethernet port: common mode ±6kV, differential mode ±2kV

Shock: IEC 60068-2-27

Free fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Authentication

CE, FCC, RoHS
