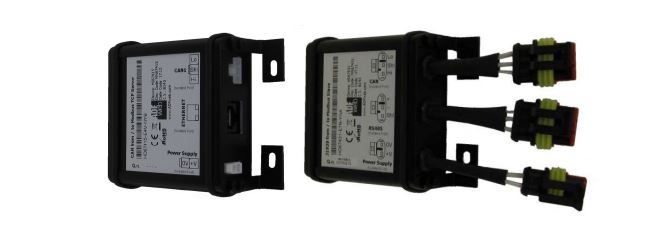

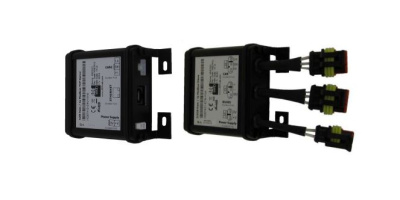

HD67453-E4R: NMEA 2000 / EtherNet - Converter

Ports:

1xCAN, 1xEtherNet

Data Rates NMEA 2000

Up to 1 Mbps

Data Rates EtherNet

10/100 Base-T Autosensing

NMEA 2000 Connector

3way Mini-Fit®

EtherNet Connector

RJ45

Power Supply Connector

2way Mini-Fit®

Power Supply

10..40V DC; 8..26V AC

Operating temperature

-40°C/+105°C (-40°F/+221°F)

Dimensions without fixing lugs

76x86x40 (LxWxH)

Dimensions with fixing lugs A

105x86x40 (LxWxH)

Dimensions with fixing lugs B

83x112.5x40 (LxWxH)

Dimensions with fixing lugs C

105x112.5x40 (LxWxH)

Weight

200g approx

Software

SW67453
