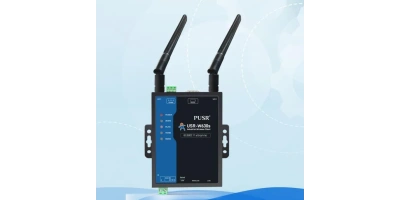

USR-W630s: Dual Band Wireless Client

Giá: Liên hệ

USR-W630s: Dual Band Wireless Client của hãng USR hiện đang được BKAII phân phối rộng rãi tại thị trường Việt Nam. USR-W630s là thiết bị không dây công nghiệp với WiFi hiệu suất cao, hỗ trợ hai băng tần 2,4 GHz và 5 GHz, hỗ trợ chế độ AP/STA/AP+STA/bridge. Thiết bị được trang bị giao diện phần cứng phong phú: 1 cổng RS232, 1 cổng RS485, 2 cổng Ethernet và công nghệ WiFi5. USR-W630s thiết kế theo tiêu chuẩn công nghiệp, nhỏ gọn, dễ dàng lấy được tín hiệu về PLC, máy tính, vi xử lý, máy tính nhúng. Sản phẩm hiện đang được sử dụng trong các bài toán M2M, IoT của các lĩnh vực: Điện lực, khí tượng thủy văn, giao thông thông minh,…

Tính năng của sản phẩm:

Serial/Ethernet to Wi-Fi Converter

With the help of USR-W630s, you can achieve data transmission between serial port devices, network port devices, and WiFi devices, as well as remotely monitor the operational status of field devices.

Qualcomm Chip, Dual Band WiFi

Powerful and reliable processor to ensure the stable.
8G & 2.4G WiFi, offering the advantages of strong anti-interference capability, high speed, and wide coverage. In an open environment, the coverage range can reach up to 400 meters

Multiple Working Modes, Meeting Diverse Scenarioes

USR-W630s provides a wealth of networking methods: AP, STA, AP+STA, AP+LAN, AP+WAN, STA+LAN, STA+WAN. And this device supports repeater and bridge mode. Through different networking methods, the data communication between the serial port device/LAN device and the remote server/LAN server can be realized, which can meet the complex network application requirements of customers.

Data Transmission Encryption, More Security

Supports SSL/TLS encryption in TCP client, HTTP client and MQTT operation modes.
Supports two-way certificates authentication.

Rich Product Features

Modbus Gateway: Modbus RTU/TCP protocol conversation, Modbus multi-host polling.
Support Transparant MQTT/TCP/UDP/HTTP data communication.
Heartbeat Packet Function: Remote server can detect abnormal disconnection from the client using this feature.

Industrial-Grade Design, High Reliability

EFT Protection: Level 3. Protect device against damage caused by instantaneous current interference in circuit, such as lightning stroke, power switch, etc.
ESD Protection: Level 3. Prevent electrostatic damage equipment, such as dust electrostatic, electric arc environment etc.
Surge Protection: Level 3. Protect devices from voltage spikessuch as lightning stroke, power switch, etc.
Watchdog: Hardware & software dual watchdog to ensure stable operation without downtime.
Wide Operation Temperature: -25℃~ +75℃.
Wide Power Input: 9~36V, reverse polarity protection.
Metal housing: IP30 protection.

Remote Management, Anytime, Anywhere

SNMP Protocol: Users can remotely view device information, modify device parameters, and monitor device information through the SNMP protocol.It does not need to go to the site to monitor and configure devices one by one. The version of SNMP supported by this device is V2C and V3.PUSR Platform: USR-W630s cooperates with PUSR platform, users can realize remote login configuration webpage, data debugging and remote firmware upgrade functions. Users can also monitor the online/offline record of the device. With all the above functions, users can monitor and manage the device conveniently.

Dimension & Interface

Dimension: 105*26*110.5mm(including mounting bracket)
ETH ports: 1*WAN/LAN, 1*LAN
Power supply: DC 9-36V, 1*terminal block connector, 1*DC jacket
Installation: Wall mounting, desktop placement
Registration Packet Funciton: The server can identify different clients by usingregistration packets.

Thông số kỹ thuật của sản phẩm:

Items	Description
Power Supply	DC: 9~36V, 2-pin terminal block connector, 5.08mm-2P, reverse polarity protection, surge protection 5.5*2.1 DC jack connector
Working Current	Average: 300mA@12V, max: 900mA @12V
Serial port
No.	1 x RS485, 3-pin terminal block connector, 3.81mm-3P 1 x RS232，DB9 male
Baud rates	RS232: 1200/2400/4800/9600/19200/38400/57600/115200/230400 RS485: 1200/2400/4800/9600/19200/38400/57600/115200/230400
Data bits	7, 8
Stop bits	1, 2
Parity	NONE, ODD, EVEN
Flow Control	RS232: Hardware flow control RS485: 485 conflict prevention
Packaging Interval	Range: 0 ~ 1000ms, default: 0ms
Packaging Length	Range: 5 ~ 1460 bytes, default: 1000 bytes
Ethernet Ports
No.	2 x Ethernet ports: 1 x WAN/LAN(configurable), 1 x LAN
Interface	RJ45, 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX, 1.5KV network isolation transformer protection
Wi-Fi
Standards & Frequency	IEEE 802.11b/g/n/ac, 2.4GHz & 5.8G
Working Mode	AP/STA/AP+STA/Bridge
Data speed	867Mbps(5.8GHz) & 300Mbps(2.4GHz)
MU-MIMO	2 x 2
Modulation system	DSSS(DBPSK.DOPSK,CCK)
Modulation system	OFDM(BPSK,QPSK,16-QAM,64-QAM,125-QAM,256-QAM)
Covering distance	2.4G: Coverage radius up to 400 meters 5.8G: Coverage radius up to 200 meters
Wi-Fi Users	16
Antenna	2 x 5 dBi rod antenna
Antenna Connector	2 x SMA-female
Physical Property
Casing material	Metal shell, IP30 protection
Dimensions	110.510526mm(LWH,antenna pedestal,terminal block are not included)
Installation	Wall munting, desktop placement
EMC	Surge protection: level 3, IEC61000 ESD protection: level 3, IEC61000 EFT protection: level 3, IEC61000
Operating temperature	-25℃～+75℃
Storage temperature	-40℃～+125℃
Operating humidity	5% ~ 95% RH, non-condensing
Storage humidity	1% ~ 95% RH, non-condensing
Software Function
Network protocols	TCP, UDP, HTTP, TLS, MQTT, ARP, DHCP, ICMP, PPPoE, IPv4, DNS, SNMP, NTP,
Modbus Gateway	Modbus RTU/TCP protocol conversion, Modbus multi-host polling
IP	DHCP/StaticIP
MQTT	Standard MQTT protocol, 16 subscription topics and 16 publish topics
Registration packet	√
Heartbeat packet	√
IOT PLATFORMS	AWS IOT, Alibaba cloud, PUSR cloud
User Configuring	Web console(HTTP), AT command
Others
Reload	Pinhole reset button, press and hold for 3~15 to reset to factory settings
Indicators	1 x RS485, 1 x RS232, 1x WLAN, 1 x RUN, 1 x PWR
Ground protection	Screw
APPROVALS
Regulatory	CE/RED, RoHS, WEEE, FCC
