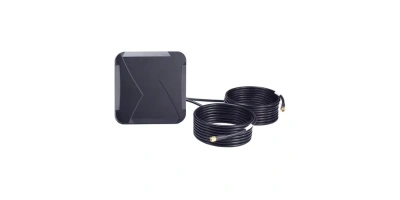

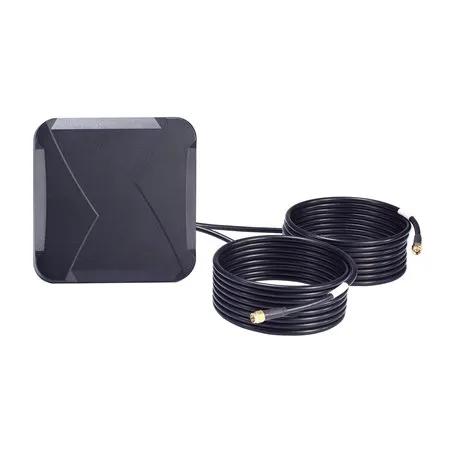

MAT-5G-PA-SM-2-06-3m: 6 dBi MIMO panel antenna with 2 SMA (male) connectors for cellular applications, 3 m cable

Frequency

617 to 960, 1427 to 1510, 1710 to 2170, 2300 to 2690 MHz

Antenna Type

Panel

Typical Antenna Gain

1.55 dBi @ 617 to 698 MHz (5G NR n71)

4.32 dBi @ 698 to 824 MHz (LTE 700)

5.18 dBi @ 824 to 960 MHz (GSM 850/900)

6.69 dBi @ 1427 to 1510 MHz (5G NR n74, 75, 76)

6.80 dBi @ 1710 to 1880 MHz (DCS)

7.10 dBi @ 1850 to 1990 MHz (PCS)

7.10 dBi @ 1920 to 2170 MHz (UMTS1)

5.41 dBi @ 2300 to 2690 MHz (LTE 2600)

Connector

SMA (male)

Impedance

50 ohms

Polarization

Linear Vertical

Dimensions

135.95 x 135.95 x 47.44 mm (5.35 x 5.35 x 1.87 in)

Radome Color

Black

Radome Material

Plastic

Installation

Screw mount

Cable

SNC200

Cable Length

3 m

IP Rating

IPx9K

Operating Temperature

-40 to 85°C (-40 to 185°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (30°C, non-condensing)
