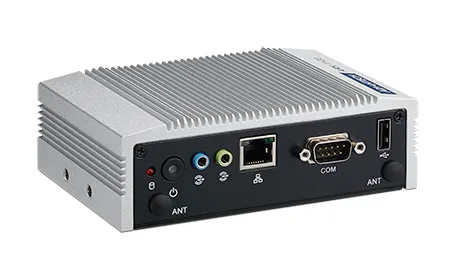

ARK-1123H-U0A4: Intel® Celeron Quad Core J1900 SoC with Dual HDMI/GbE IoT Fanless BOX PC

Processor

CPU

Intel Celeron Processor J1900 Quad Core 2.0 GHz SoC

L2 Cache

2 MB

Core Number

4

Frequency

2.0 GHz (Up to 2.41 GHz w/ burst frequency enabled)

BIOS

AMI EFI 64 Mbit (Default BIOS is supported for 64-bit OS installation, BIOS for 32-bit OS is supported by project)

Memory

Technology

DDR3L 1333 MHz

Max. Capacity

8 GB

Socket

1 x 204-pin SO-DIMM

ECC Support

No

Graphics

HDMI

2

Intel® Atom SoC integrated

DirectX* 11.1, OGL 3.0, OCL 1.1, OGL ES 2.0 Encode: H264, MPEG2/4, VC1, WMV9 Decode: H264, MPEG2

Chipset

Intel® Atom SoC integrated

Ethernet

Controller

2

LAN1

10/100/1000 Mbps Intel i210 GbE, support Wake On Lan

LAN2

10/100/1000 Mbps Intel I210 GbE, support Wake on LAN

Audio

Main System

ALC-888S, High Definition Audio. Line-out & Line-in

I/O Interface

Serial Port

2 x RS-232/422/485 (BIOS selectable)

USB Interface

2 x USB 2.0 & 1 x USB3.0

Expansion

Mini PCIe #1

1 x Full-size Mini PCIe, support WLAN or WWAN module

Others

Watchdog timer

255 levels timer interval, setup by software

Storage

mSATA

1x Half-size

2.5" HDD/SSD

1 x 2.5” SATA HDD Bay (Max Height 9.5mm)

Software Support

Microsoft Windows

Windows 10 IoT 64-bit

Linux

Support by project

Power

Input Voltage

12 VDC

Power Adaptor

AC to DC, DC12 V/3 A, 36 W with threaded design

Power Consumption

Max.

14.04W

Typical

5.64W

Mechanical

Construction

Aluminum housing

Dimensions

133.8 x 43.1 x 94.2 mm (5.27" x 1.7" x 3.71")

Mounting

VESA/DIN Rail/Wall Mounting Kits (Optional)

Weight

0.8kg

Environment

Relative Humidity

95% @ 40° C (non-condensing)

Operating Temperature

With extended temperature SSD/mSATA/RAM : -20 ~ 60° C with 0.7m/s air flow With standard temperature HDD/SSD/mSATA/RAM peripherals:0 ~ 40° C with 0.7m/s air flow

Storage Temperature

- 40 ~ 85° C (-40 ~185° F)

Vibration During Operation

With mSATA/SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis With HDD: 0.5Grms, IEC 60068-2-64, random, 5~500Hz, 3 axes, 1hr/axis

Shock During Operation

With mSATA/SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration With HDD: 10G, IEC 60068-2-27, half sine, 11 ms duration

Certification

EMC

CE/FCC Class B, CCC, BSMI

Safety Certifications

UL, CB, CCC, BSMI
