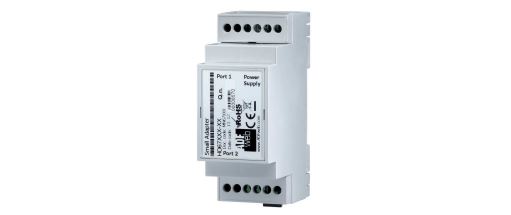

HD67939-G43-B2: CAN / MQTT - Converter

Ports:

1xCAN; 1xEthernet; SIM Card

EtherNet LTE protocol

MQTT

CAN protocol

CAN 2.0A and CAN 2.0B

Data Rates CAN

Up to 1Mbps

Data Rates MQTT

10/100 Base-T Autosensing

CAN connector

3way 5mm terminal block

MQTT connector

RJ45+ SIM

Power supply

8..24V AC; 12..35V DC

Power supply connector

2way 5mm terminal block

Operating temperature

-40° to +85° (-40°F to +185°F)

Dimensions

36x60x95 (DxWxH)

Weight

200g approx

Mechanical fixing

35mm DIN Rail montage

Software

SW67939
