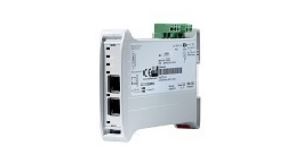

HD67866-A1-4A: IO-Link Master / CAN - Converter

Ports:

1xCAN;1xEthernet; 4xIO-Link;

CAN protocol

CAN

IO-Link protocol

IO-Link Master

Data rates CAN

Up to 1 Mbps

Data rates IO-Link

4800 bps - 38400 bps - 230400 bps

CAN Connector

3way 5mm terminal block

IO-Lin Connector

4x-IO-Link A: 4way 3mm terminal block

Power Supply Connector

2way 5mm terminal block

Power Supply

8..24V AC; 12..35V DC

Operating temperature

-40°C/+85°C (-40°F/+185°F)

Dimensions

120x23x107 (LxWxH)

Weight

200g approx

Mechanical fixing

DIN Rail montage

SOFTWARE:

SW67866
