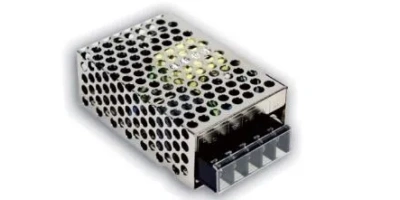

RS-25-24: Nguồn Meanwell 24V 1.1A 25W

MODEL

RS-25-3.3

RS-25-5

RS-25-12

RS-25-15

RS-25-24

RS-25-48

OUTPUT

DC VOLTAGE

3.3V

5V

12V

15V

24V

48V

RATED CURRENT

6A

5A

2.1A

1.7A

1.1A

0.57A

CURRENT RANGE

0 ~ 6A

0 ~ 5A

0 ~ 2.1A

0 ~ 1.7A

0 ~ 1.1A

0 ~ 0.57A

RATED POWER

19.8W

25W

25.2W

25.5W

26.4W

27.36W

RIPPLE & NOISE (max.) Note.2

80mVp-p

80mVp-p

120mVp-p

120mVp-p

120mVp-p

200mVp-p

VOLTAGE ADJ. RANGE

2.85 ~ 3.6V

4.75 ~ 5.5V

10.8 ~ 13.2V

13.5 ~ 16.5V

22 ~ 27.6V

42 ~ 54V

VOLTAGE TOLERANCE Note.3

±3.0%

±2.0%

±1.0%

±1.0%

±1.0%

±1.0%

LINE REGULATION                         Note.4

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

±0.5%

LOAD REGULATION                         Note.5

±2.0%

±1.0%

±0.5%

±0.5%

±0.5%

±0.5%

SETUP, RISE TIME

1800ms, 23ms/230VAC         4000ms, 30ms/115VAC at full load

HOLD UP TIME (Typ.)

80ms/230VAC      14ms/115VAC at full load

INPUT

VOLTAGE RANGE

88 ~ 264VAC         125 ~ 373VDC (Withstand 300VAC surge for 5sec. Without damage)

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY(Typ.)

73.5%

78.5%

81.5%

83.5%

86%

85%

AC CURRENT (Typ.)

0.7A/115VAC      0.4A/230VAC

INRUSH CURRENT (Typ.)

COLD START 45A/230VAC

LEAKAGE CURRENT

<2mA / 240VAC

PROTECTION

OVERLOAD

110 ~ 180% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

3.8 ~ 4.45V

5.75 ~ 6.75V

13.8 ~ 16.2V

17.25 ~ 20.25V

27.6 ~ 32.4V

55.2 ~ 64.8V

Protection type : Shut off o/p voltage, clamping by zener diode

ENVIRONMENT

WORKING TEMP.

-20 ~ +70℃ (Refer to "Derating Curve")

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40 ~ +85℃, 10 ~ 95% RH

TEMP. COEFFICIENT

±0.03%/℃ (0 ~ 50℃)

VIBRATION

10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

(Note 6)

SAFETY STANDARDS

UL62368-1, TUV BS EN/EN62368-1 , AS/NZS 62368.1, EAC TP TC 004, CCC GB4943.1, BSMI CNS15598-1, BIS IS13252(Part1):2010/IEC 60950-1: 2005 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC  I/P-FG:2KVAC  O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH

EMC EMISSION

Compliance to BS EN/EN55032 (CISPR32) Class B, BS EN/EN61000-3-2,-3,GB9254 class B,GB17625.1, EAC TP TC 020,

CNS15936 Class B

EMC IMMUNITY

Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN55035, light industry level, EAC TP TC 020

OTHERS

MTBF

3992.0K hrs min.     Telcordia SR-332 (Bellcore) ; 663.3K hrs min.      MIL-HDBK-217F (25℃)

DIMENSION

78*51*28mm (L*W*H)

PACKING

0.2Kg; 60pcs/13Kg/0.46CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. Line regulation is measured from low line to high line at rated load.

5. Load regulation is measured from 0% to 100% rated load.

6. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on a 360mm*360mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.”

(as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).

※ Product Liability Disclaimer：For detailed information, please refer to https://www.meanwell.com/serviceDisclaimer.aspx
